Control Sessions and Controllers

A Control Session represents one player occupying a Control Station and controlling its Assembly. Starting a session places the occupant at the station, creates a separate Controller UObject, and connects the station's Input Actions. Ending the session removes those bindings, restores player movement, and places the occupant at the authored Exit transform.

The Assembly Controller runs inside that session. It converts semantic input such as Move, Throttle, or Attitude into actuator output.

How input reaches a Controller

Key or device input
      ↓  active Input Mapping Context
Input Action
      ↓  CAT Assembly Interactor Component
Control Station input binding
      ↓  semantic Controller slot
On Controller Update
      ↓
Motor / Fan / actuator output

Control Station input has two separate layers:

Enter and leave the Control Session

The CAT Assembly Interactor Component handles session-level input.

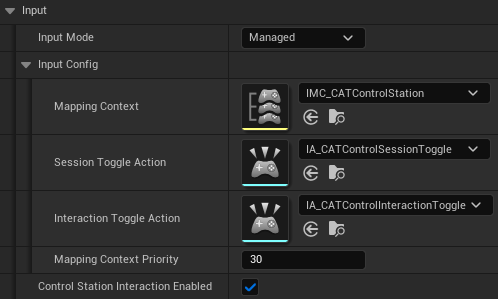

The settings below are in Details > Input on the CAT Assembly Interactor Component attached to the player's Character or Pawn.

• In Managed Input Mode, it adds IMC_CATControlStation and binds its configured actions. By default, IA_CATControlSessionToggle uses R to enter the nearest available station or leave the active one.
• IA_CATControlInteractionToggle enables or disables Control Station interaction. Disabling interaction during an active session also ends that session.
• In External Input Mode, CAT does not manage the context or these bindings. Call Try Begin Control Station Interaction, Toggle Control Station Interaction, or End Control Station Interaction from your own input code.

Create a Controller Part for the Assembly

To control an Assembly, use a Part Model with a Control Station feature as its Controller Part. A Controller Part is not a separate asset type.

1. Open the Part Model that will represent the seat, cockpit, console, or other control device.
2. Add a Control Station feature in the Features panel.
3. Select the Controller Class that matches the Assembly, then adjust its Controller Settings.
4. Assign an Input Action to each Controller Input Slot.
5. Add the Controller Part to the Assembly in the Assembly Editor.

When the player enters this Part, CAT starts a Control Session and sends the assigned Input Actions to the selected Controller. Map the keys or gamepad controls for those actions in an Input Mapping Context used by the player.

Create a Control Station

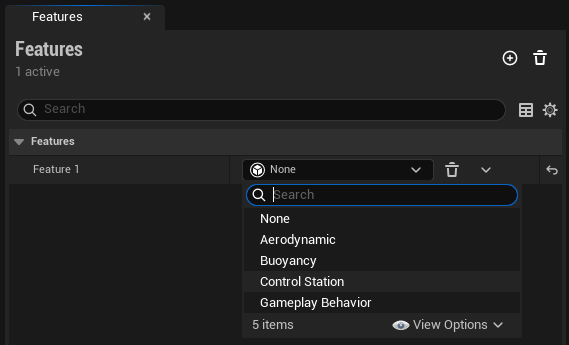

In the Part Model Editor's Features panel, add a feature and select Control Station.

1. Add a Control Station feature to the appropriate Part Model.
2. Select a Controller class.
3. Assign compatible Input Actions to the Controller's input slots, and map those actions in an Input Mapping Context used by the player.
4. Configure occupant, control, and exit frames.
5. Validate the Part Model and Assembly.

Control Station parameters

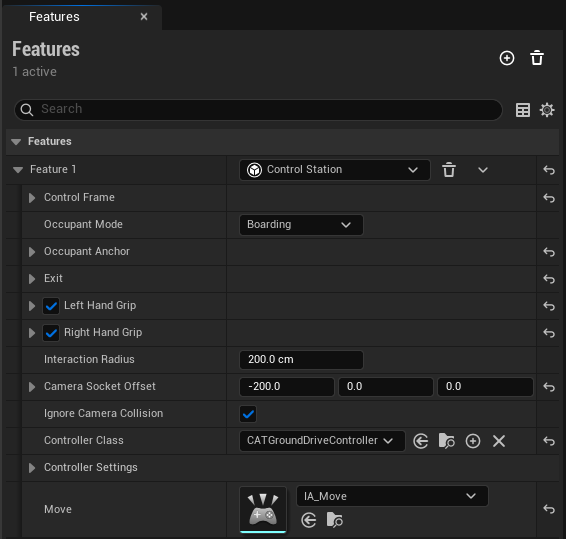

The Control Station feature's Details panel defines how the player occupies the station, how the camera behaves, and which Controller receives input.

Parameter	Purpose
Control Frame	Defines the reference frame used while controlling the Assembly.
Occupant Mode	Chooses whether the occupant remains visible at the station or is hidden during control.
Occupant Anchor / Exit	Sets where the occupant is placed during the session and after leaving it.
Left Hand Grip / Right Hand Grip	Provides optional hand targets for character IK.
Interaction Radius	Sets how close the player must be to enter the station.
Camera Socket Offset	Offsets the third-person camera while the station is occupied.
Ignore Camera Collision	Excludes the controlled Assembly from the occupant camera collision test.
Controller Class / Controller Settings	Selects the Assembly Controller and exposes its tuning values.
Input Slots	Assigns an Input Action to each semantic Controller input such as Move, Throttle, or Attitude.

Built-in Controllers

Controller	Intended use	Default input
Ground Drive	Wheels, tracks, differential steering	Axis2D movement
Aircraft	Throttle and attitude control	Axis1D + Axis3D
Watercraft	Forward drive and steering	Axis2D movement

Occupant Mode

Mode	Occupant placement and rendering	Suitable use
Boarding	Uses the authored Occupant Anchor position and rotation. The occupant remains rendered while controlling.	Seats, cockpits, decks, and other cases where the character should remain visible.
Possession	Locks the occupant position to the local origin of the Part that contains the Control Station, while retaining the Occupant Anchor rotation. The occupant is suppressed from rendering while controlling.	Making the character invisible while the player controls a vehicle or device.

During a Control Session, the occupant is attached to the Assembly and locked to the control position. A character with Character Movement has movement disabled during control and restored when the session ends. The authored Exit transform is used on exit. Occupant Anchor scale is not used to change occupant scale.

Possession describes CAT Control Station behavior only; it does not describe a general Unreal AController::Possess call.

Camera Settings

Property	Description
Camera Socket Offset	A local-space position offset, in cm, added to the third-person spring-arm socket while the station is occupied. FVector::ZeroVector keeps the existing camera framing. Use it to move the framing to the right, up, back, or another position; it is not a rotation value.
Ignore Camera Collision	When enabled, the local occupant camera ignores the currently controlled Assembly for its collision test. This can reduce cases where the Assembly pushes the spring arm too close to the camera. It does not disable other collision or interaction queries. The default is true.

Custom character integration

The Control Station Feature provides the camera setting data; it does not automatically apply the settings to every character spring arm. The supplied ACATDemoCharacter reads the values on Control Station interaction start, applies them, and restores its camera state when the interaction ends. Projects using a custom character or camera system must connect the same settings in their own camera code. See Source/CATSandbox/CATDemoCharacter.cpp for the sample implementation.

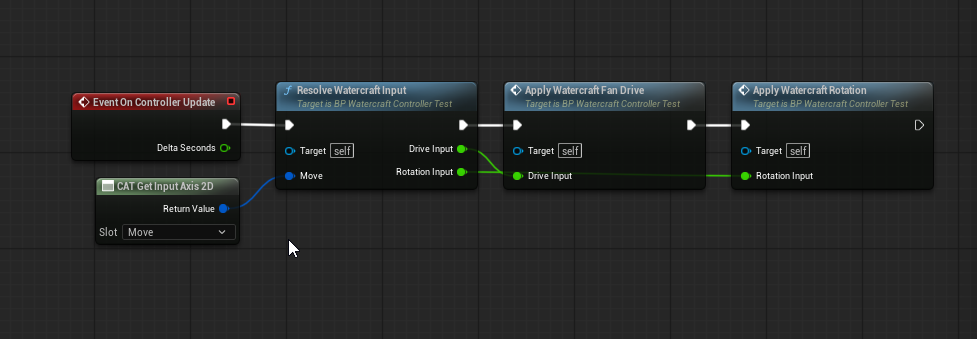

Create a Blueprint Controller

1. Create a Blueprint derived from CAT Assembly Controller or a built-in Controller.
2. Declare semantic input slots in Class Defaults.
3. Implement On Controller Started, On Controller Update, and On Controller Stopped as needed.
4. During On Controller Update, find actuator handles and write the complete output frame.

Important runtime rules

• Controller output is valid only during On Controller Update.
• Actuator handles can become stale after an Assembly revision changes.
• Controller UObject variables are not replicated or restored for network resimulation.
• Do not replace the scheduled Controller update with general Event Tick.
